PUR-STOCK®
Shuttering panel with edges
reinforced by a polyurethane high pressure injection
Download PDF / Request information
OVERVIEW
What it is. PUR-STOCK® is an innovative formwork panel patented by ILPA in 2017: a wood-based panel with perimeter edges protected by high-pressure injected polyurethane. This exclusive technology completely seals the panel edges, eliminating the most vulnerable point of traditional formwork.
Who it's for. PUR-STOCK® is the ideal solution for formwork rental companies, large construction firms and formwork system manufacturers that demand maximum durability and minimal maintenance cost. Available in Light and Strong versions, it adapts to every site requirement, from lightweight structures to heavy loads.
Why choose it. The polyurethane perimeter protection makes PUR-STOCK® resistant to impacts, moisture and edge wear, drastically extending the panel's service life. It can be nailed without damage, is equipped for RFID identification for fleet management, and is FSC® and PEFC™ certified for environmental sustainability.
CHARACTERISTICS
PUR-STOCK® panel is the evolution, created by ILPA, of spruce or birch formwork panel, whose edges are reinforced by a single polyurethane high-pressure injection. This application protects the more stressed parts of the formwork even from particularly hard collisions, as per the attached videos.
Our plant in Nave
PUR-STOCK® presentation
PUR-STOCK® stress test
Calendar
Hole
Perimeter Protection
PUR-STOCK® Light
Traditional three-ply spruce panel whose edges are protected by polyurethane.
Technical features
| Type | PL / 27 | |
| Thickness ± 0,5 | mm | 27 |
| Weight | kg/m2 | 13,5 |
| Bending Resistance EN 789 | MPa | 37 |
| Elastic-Modulus EN 789 | MPa | 8.250 |
| Dimensions | mm | 500 x 2000 |
TYPE PL / 27
Thickness: 27 mm

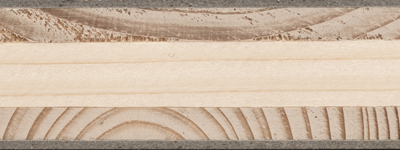

Core structure: three crossed spruce layers
PUR-STOCK® Strong
Traditional formwork panel with plastic overlay and edges protected with polyurethane
Technical features
| Type | PS / 15 | PS / 18 | PS / 21 | PS / 27 | |
| Thickness ± 0,5 | mm | 15 | 18 | 21 | 27 |
| Weight | kg/m2 | 12 | 14 | 15,5 | 15,5 |
| Bending Resistance EN 789 | MPa | 41 | 44 | 33 | 35 |
| Elastic-Modulus EN 789 | MPa | 5.600 | 6.000 | 7.300 | 8.200 |
| Dimensions | mm | 500 x 2000 | 500 x 2000 | 500 x 2000 | 500 x 2000 |
| Panels per Pack | n | 70 | 60 | 50 | 40 |
TYPE PS / 15
Thickness: 15 mm
Core structure: birch plywood
TYPE PS / 18
Thickness: 18 mm
Core structure: birch plywood
TYPE PS / 21
Thickness: 21 mm
Core structure: birch plywood
TYPE PS / 27
Thickness: 27 mm
Core structure: three crossed spruce layers
NAILING SET-UP
Nailing set-up prevents the panel from damage and consequent moisture absorption.
LIFESPAN CYCLE
RFID INTEGRATION
The PUR-STOCK® Strong panel is particularly suitable for renting. For this reason, on request, it is possible to enter an RFID, a microchip to record on an external database the whole life cycle.
APPLICATIONS
